DIO 125

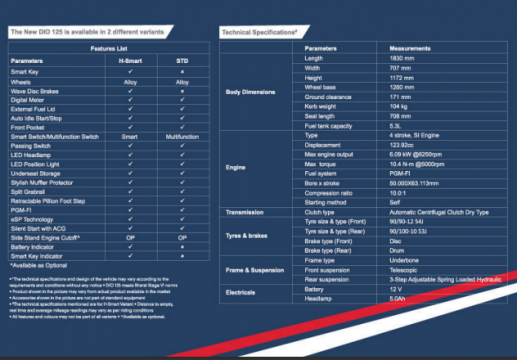

Specifications
Body Dimensions
Length |
1830 mm |
Width |
707 mm |
Height |
1172 mm |
Wheel Base |
1260 mm |
Ground Clearance |
171mm |
Seat Length |
708 mm |
Kerb Weight |
104 kg |
Fuel Tank Capacity |
5.3 L |
Engine
Type |
4 Stroke, SI Engine, |
Displacement |
123.92 cc |
Max Net Power |
6.09 kW @ 6250 rpm |
Max Net Torque |
10.4 N-m 5000 rpm |
Bore |
50.0 mm |
Stroke |
63.113 mm |
Fuel System |
PGM-FI |
Compression Ratio |
10.0:1 |
Air Filter Type |
Viscous Paper Filter |
Starting Method |
Self |
Transmission
Clutch Type |
Automatic |
Tyres & Brakes
Tyre Size (Front) |
90/90-12 |
Tyre Size (Rear) |
90/100-10 |
Tyre Type (Front) |
Tubeless |
Tyre Type (Rear) |
Tubeless |
Brake Type & Size (Front) |
Disc 130 mm |
Brake Type & Size (Rear) |
Drum 130 mm |
Frame & Suspension
Frame Type |
Under Bone |
Front |
Telescopic Suspension |
Rear |
3-Step Adjustable Spring Loaded Hydraulic |
Electricals
Battery |
12.v |
Head Lamp |
5.0Ah |
