Dio

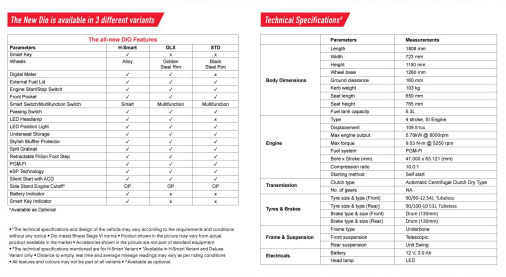

Specifications
Body Dimensions
Length |
1808 mm |
Width |
723 mm |
Height |
1150 mm |
Wheel Base |
1260 mm |
Ground Clearance |
160 mm |
Seat Length |
650 mm |
Kerb Weight |
103 kg |
Fuel Tank Capacity |
5.3 L |
Engine
Type |
4 stroke, SI Engine |
Displacement |
109.51 cc |
Max Net Power |
5.78 KW @8000 rpm |
Max Net Torque |
9.03N-m @ 5250 rpm |
Bore |
47.000 mm |
Stroke |
63.121 mm |
Fuel System |
PGM-Fi |
Compression Ratio |
10.0:1 |
Starting Method |
Self |
Transmission
Clutch Type |
Automatic |
Tyres & Brakes
Tyre Size (Front) |
90/90-12 |
Tyre Size (Rear) |
90/100-10 |
Tyre Type (Front) |
Tubeless |
Tyre Type (Rear) |
Tubeless |
Brake Type & Size (Front) |
Drum |
Brake Type & Size (Rear) |
Drum |
Frame & Suspension
Frame Type |
Under Bone |
Front |
Telescopic |
Rear |
Unit Swing |
Electricals
Battery |
12V, 3.0 Ah |
Head Lamp |
LED |
